2110MHz-2170MHz 10W Final Solution

應用方案 | 日期：2021-09-23 | 閱讀：

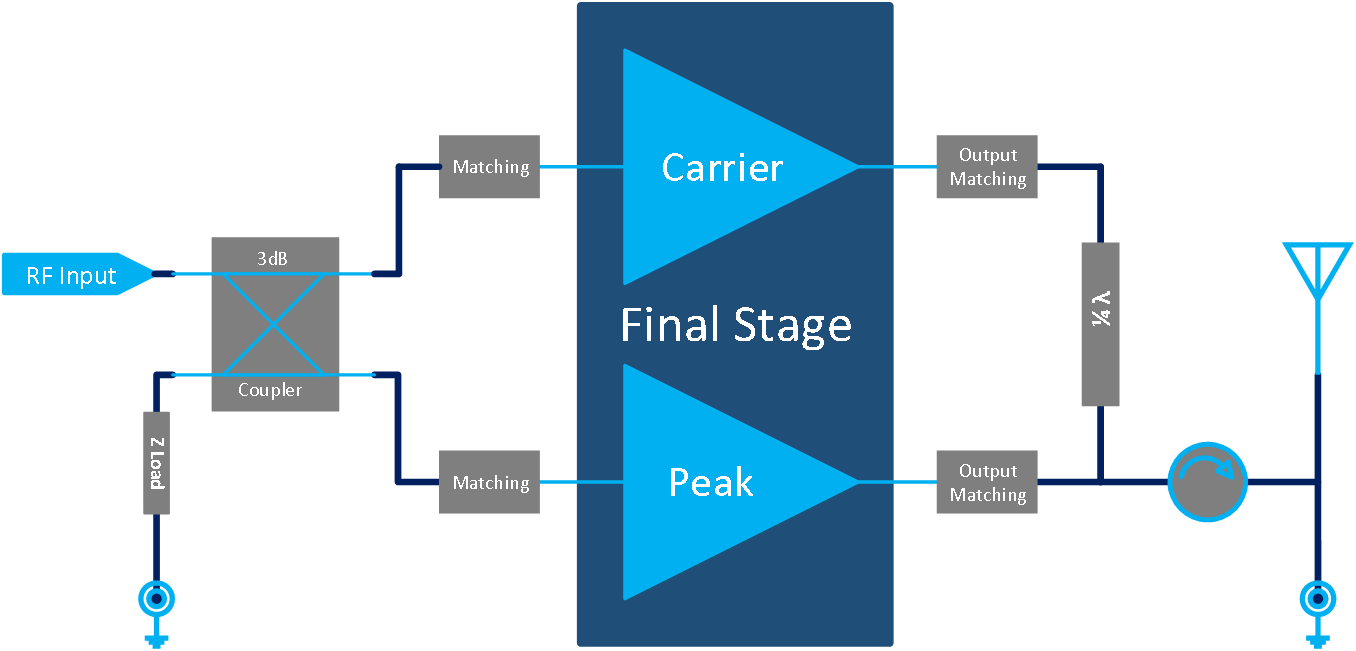

2110MHz-2170MHz 10W Final Solution(圖1)

Final:

DXG1CH19A-100EF

2110MHz-2170MHz 10W Final Solution(圖2)

Package Type: 400-4





CW Pulsed 10%


Modulated  Signal

Freq (MHz)

Psat (dBm)

Gp (dB)@41.7dBm

DE (%)@41.7dBm

ACLR (dBc)

@ 41.7dBm

2110

50.4

17

58.5

-34

2140

50.3

16.9

59.2

-33.8

2170

50.3

16.7

58.5

-33.5


Remark : Test  Condition

CW Pulsed: 10% Duty Cycle, 100uS Duration;

Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH;

Tested without isolator.
